Sesi-TIS-15 ‌High-Performance Thermal Insulation Sheets for Heat Dissipation Management

Introduction

Sesi - TIS - 15 thermal insulation sheet specifically designed for the situation which need both heat transfer and insulation voltage resistance , high-performance elastomeric insulation material based on glass fiber as the reinforced material ,has excellent cutting resistance and thermal performance, is widely used in electronic appliances industries.

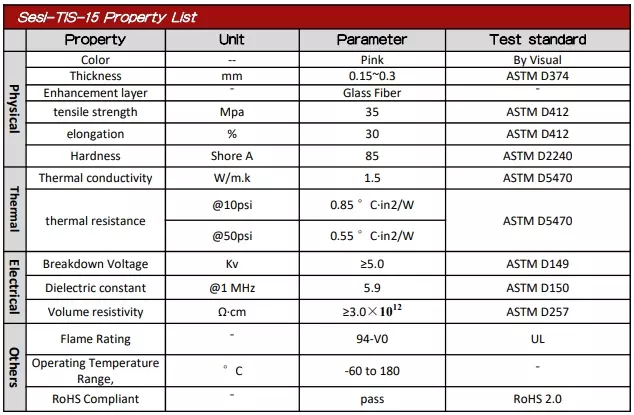

Property

Low thermal resistance 0.55°C·in2/W (@ 50 psi)
High insulation and voltage resistance Wear-resisting ,hard to pierce, easy to use V-0 Flame Rating

Application

Desktop, laptop and server
The microprocessor
Chips and chipsets
NB the cooling module
The graphics card
Storage module

Configuration, Stotage

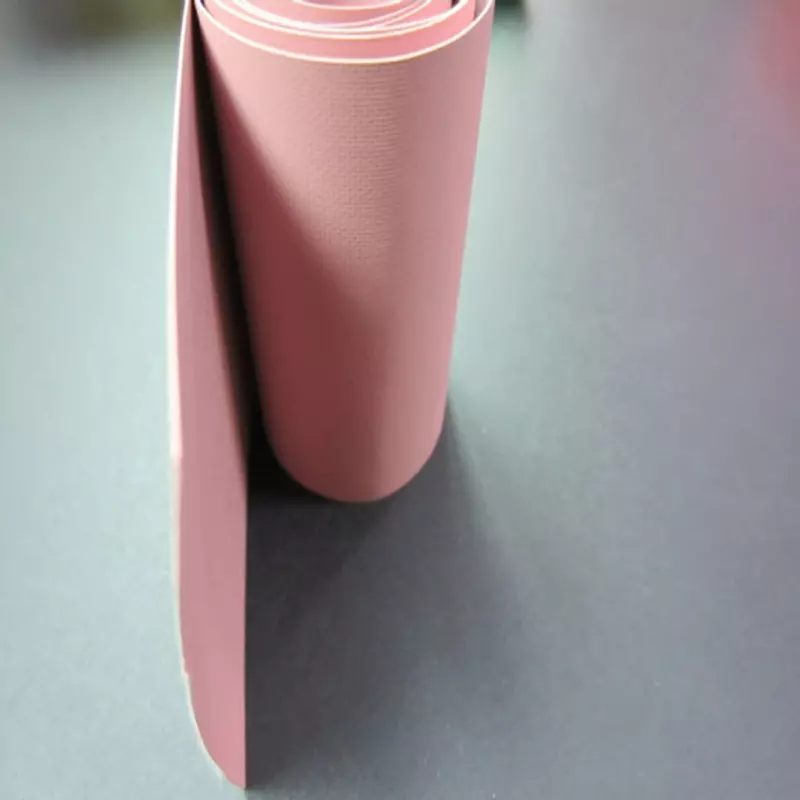

Standard size Per roll:300mm × 50 m, can be cut as demand
Can be added one adhesive layer
This product is non-toxic and non-hazardous, which is transported by general
chemicals and stored in cool (room temperature) & dry place.

The above content and technical information are based on the experimental results of our company, but its not as a legal
interpretation or guarantee, before using, user need to assess whether the product is suitable for the purpose of application scope.
