Sesi-TGP-35 High Thermal Conductivity Silicone Pad | Heat Dissipation Solution for Electronics | Durable & Insulating Material
Product Details
Introduction

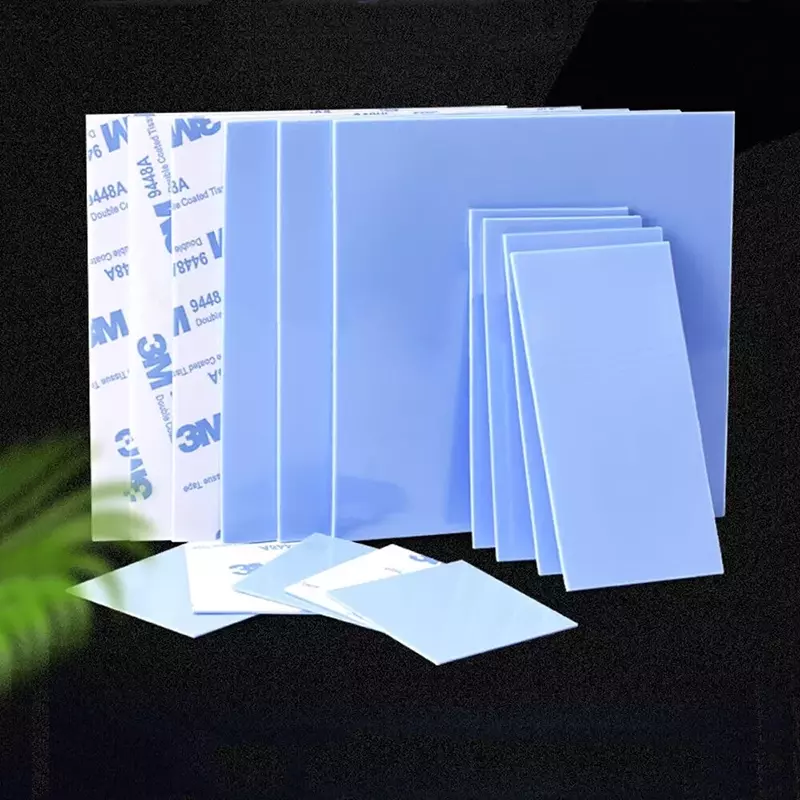

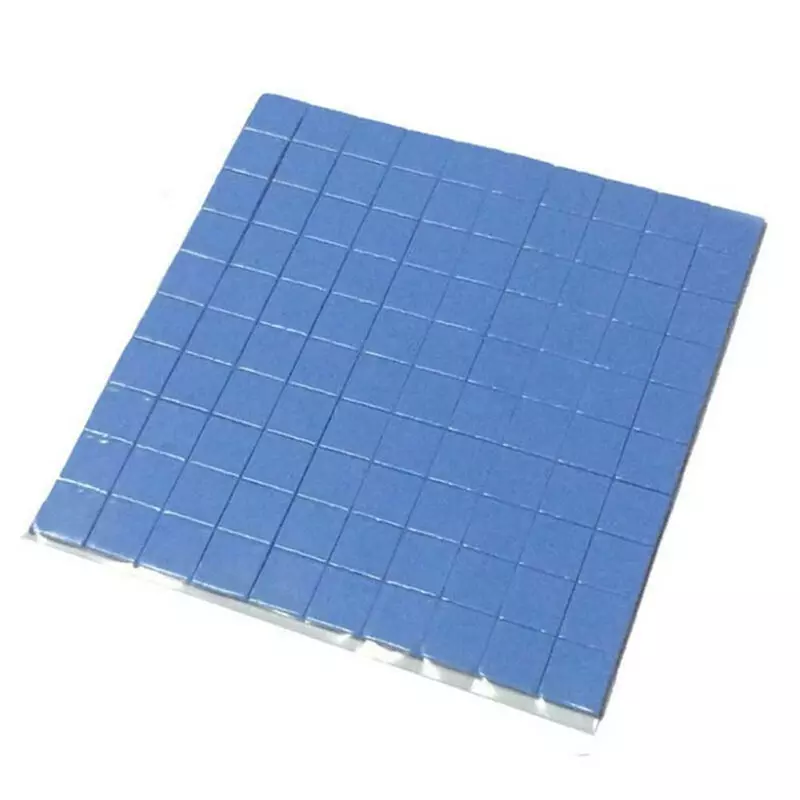

Sesi-TGP-35 Gap pad, Highly conformable / low hardness, Good compressibility & self-adhesive strength, excellent filling performance.

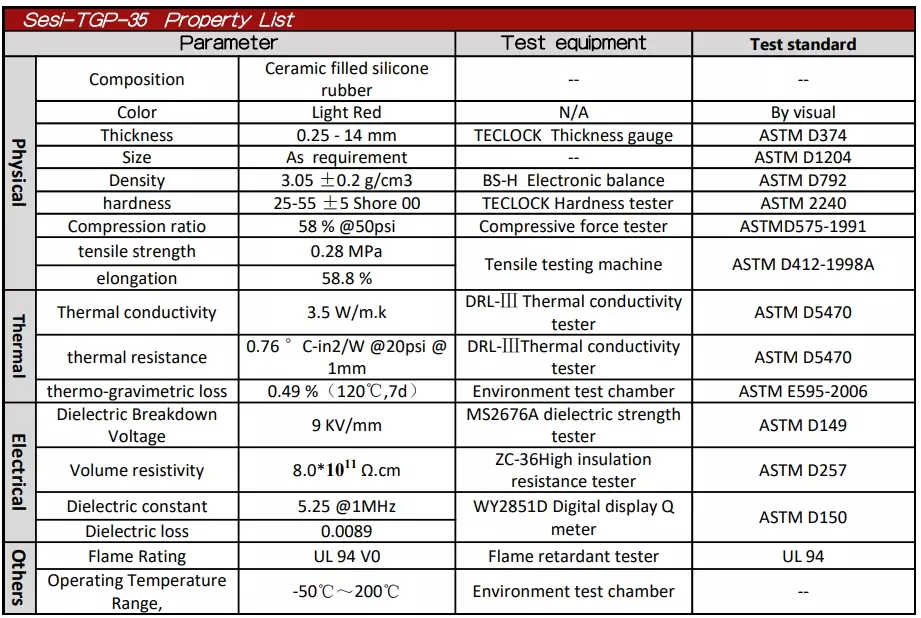

Property
K: 3.5W/m-k
Easily spread out on the uneven surface, Good insulation ,Flame retardant & self-adhesive performance, Low thermal resistance.

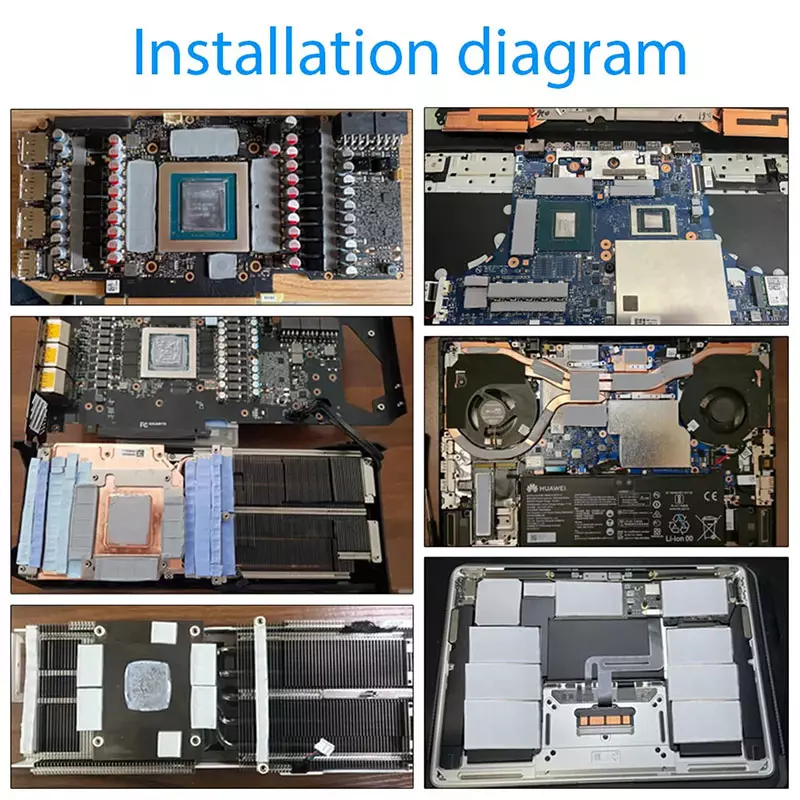

Typical Application
Automobile lithium battery radiator
LED Lighting equipment
Power conversion
Computer and peripherals
Router
Memory modules
Size
Hardness tolerance ：±5
Size：200mm×400mm, shape to die cutting by requirement
Thickness：0.25mm to 14mm
The above content and technical information are based on the experimental results of our company, but its not as a legal interpretation or guarantee, before using, user need to assess whether the product is suitable for the purpose of application scope.
